360 Degree Panohead V.02B – Wood Version For Workshop And Exhibition On ICC Tokyo

Prototype of The DIY 360 Degree Panohead V.02B Photography Tools
(2016)
___________________________________________



The wood version of Panohead V.02B is a development version of The Panohead V.02 Design that was made limited only for Workshop – GoCircle: How To Make DIY 360-Degree Picture at ICC Gallery, Tokyo.
It’s a part of The Collaboration Project ‘‘Media Conscious in Asia”: Lifepatch ‘Rumah dan Halaman’, which is an exhibition as a collaboration between Lifepatch, Japan Foundation Asia Center, and NTT InterCommunication Center (ICC) that was held on ICC Gallery, Tokyo Opera City Tower, Shinjuku-ku, Tokyo.

The Development of Panohead V.02B design based on the test result of The Panohead V.02 Design that was used to make 360-degree photos during the environmental monitoring project called The Jogja River Project. After being tested with Nikon D90 + 18-105mm lens and Canon EOS 60D + 18-55mm lens, The test results brought several points on the Panohead V.02 or could to be called as the Panohead V.02A that need to be repaired, which is focusing on the base material exploration and the vertical axis rotation mechanism.

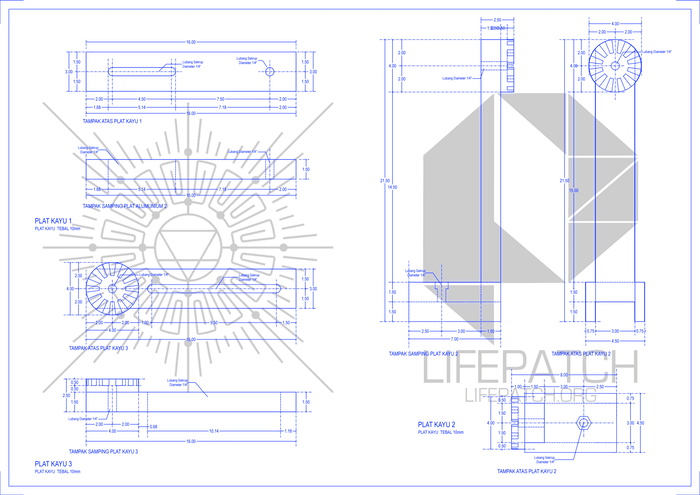

Basically, The Panohead V.02B main structure still based on the Panohead V.02A design that could be used with various types of cameras, lenses, and tripod just like the design of commercial panoramic picture tripod head. It’s separated became 3 part, which is the part 1 plate as the nodal point horizontal adjustment plate, the part 2 plate as the structural column for supporting the camera vertical rotation, and the part 3 plate as the camera mounting and nodal point adjustment. The development that applied on the Panohead V.02B design is focusing on the part 1 model as the horizontal adjustment plate and the joint mechanism between part 2 and part 3 as the nodal point of cameras vertical rotation.

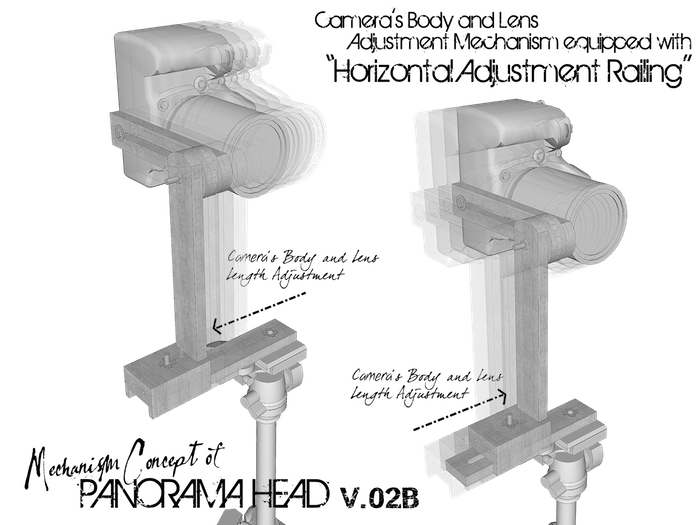

The part 1 design is change become a static plate as a railing track for the plate 2 horizontal movement to adjust the camera nodal point position. Beside of that, The design of plate 2 also slightly changed on its connector with the part 1 plate, which is equipped with connector block that made the horizontal movement doesn’t have to disturb the connection between the part 1 plate and the tripod mounting head.

Another enhancement that made on the Panohead V.02B design is the design of joint mechanism between part 2 and part 3 as the nodal point of cameras vertical rotation. it supported with gear mechanism to make the vertical rotation position easier to locked and adjusted.

The concept of Panohead V.02B design is developed based on wood material as a workshop kit for the Workshop – GoCircle: How To Make DIY 360-Degree Picture event in ICC Gallery Tokyo. Within the development itself, I’m as part of Lifepatch make a small collaboration with “St. Joseph – The Carpenter” to built The DIY 360-Degree Panohead Workshop Kit.

The test of Panohead V.02B with Nikon D90 + 18-105mm lens conduct on the ICC Gallery B5, which is the exhibition space for Collaboration Project ‘‘Media Conscious in Asia”: Lifepatch ‘Rumah dan Halaman’ at ICC Gallery, Tokyo.

The Exhibition of Collaboration Project ‘‘Media Conscious in Asia”: Lifepatch ‘Rumah dan Halaman’
The Exhibition of Collaboration Project ‘‘Media Conscious in Asia”: Lifepatch ‘Rumah dan Halaman’ at NTT InterCommunication Center (ICC) Gallery, Tokyo Opera City Tower, Shinjuku-ku, Tokyo.
